Satya Steel - Top 550 SD TMT Bars in India.
SUPERIOR TMT-BARS

When it comes to building robust and lasting structures, the quality of materials used is paramount. Satya TMT Bars, a flagship product of Satya Steel a proud subsidiary of Shreesatya Group stand out as the top choice for construction in Eastern India. Renowned for their superior strength, innovative design, and advanced manufacturing processes, Satya TMT Bars are the go-to solution for builders and engineers who demand the best.

Satya Steel - Desh ka Steel are treated through Hennigsdorfer Stall Engineering GmbH (THERMEX) Quenching, Tempering and Cooling stages with Grades Fe500, Fe500D, Fe550, Fe550D & Fe600. We also produce EQR & CRS quality TMT Bars. Born out of Innovation Satya Steel - Desh ka Steel aims to establish its presence in the emerging market needs for the superior quality standards with uniformity in Grade & Dimensions. It is 15% more economical than ordinary TMT Bars having excellent elongation, bend, rebend & superior weldability. Better ductility due to extremely low sulphur & phosphorous content which makes it strong enough to withstand jerk loads during earthquakes. Once more Satya Steel - Desh ka Steel subjected to a mechanical and chemical tests at par with IS 1786:2008 with sizes 8, 10, 12, 16, 20, 25, 28 & 32 mm.

bg_image

Key Features of Satya TMT Bars

In summary, the combination of a hardened surface and a softer core achieved through the two-phase cooling process in Thermex® technology results in TMT bars with superior properties in terms of strength, toughness, ductility, and weldability. These properties make them an excellent choice for use in infrastructure and high-rise residential construction, where structural integrity and reliability are paramount.

Superior Strength

Satya TMT bars are rolled out in modern Rolling Mill equipped with computerized controls. Every critical parameter is continuously monitored to deliver with the best quality having higher stress strain ratio along with same yield strength. The high strength of the bars make them an ideal material to be used with concrete for making structures more robust. The ductility of the TMT bars makes them easier to work with, and pre-welded meshes can be made offsite reducing the overall construction time.

Seismic Activity

Satya TMT bars have the ability to absorb large amount of energy and shock released during earthquakes / seismic activities thus avoiding catastrophe. The high elongation and ductility and can thus be deformed to a much larger extent without breaking. A combination of very specific balance of chemical properties and stringent quenching parameters develops the desired parameters.

Superior Bendability

Ductility determines the capacity of bending. Satya TMT bars are having a tough outer surface with a soft core thus increasing bendability, also making it suitable to adapt to architectural design as desired allows for easy working.

Superior Weldability

Satya TMT bars have do not require pre or post welding treatment asthey have low carbon content and are produced under controlled Thermo Mechanical Treatment .

Superior Bonding

Satya TMT bars have been designed with uniform and precise rib pattern to ensure excellent bond strength between mortar, concrete & reinforcement steel.

Fire Resistance

Satya TMT bars have high thermal stability and can withstand higher temperatures ensuring safety. Due to its high thermal stability, TMT bars can withstand temperatures ranging from 400 to 600 degree Celsius; this ensures the building’s structural integrity even during a fire.

Cost Saving

Due to superior strength & elongation of Satya TMT bars, lesser quantity than ordinary TMT bars are required. This indirectly helps for savings without affecting safety & quality. Apart from reducing the cost of raw material, it also saves cost on transportation and storage. Satya TMT bars are also easier to manage on-site, which leads to a further cost saving due to reduced construction and fabrication time.

Quality

Satya Steel is a reputed manufacturing company that spans decades of craftsmanship and knowledge in producing the most premium, reliable, high TQM, we have put in place the following processes to ensure that Satya Steel products have the highest quality.

Fully equipped optical emission spectrometer

Quality control lab

Quality control lab

Facilities for monitoring raw materials, consumables and stores

Independent quality checks at each stage of production

Physical & Chemical Testing

Tensile Test

Yield Stress Test

Percentage Elongation Test

Bend Test

Re-bend Test

Alternate Immersion Test

Salt Spray Test

Sulphur Dioxide Test

Potentio Dynamic Test

Chemical Analysis Test

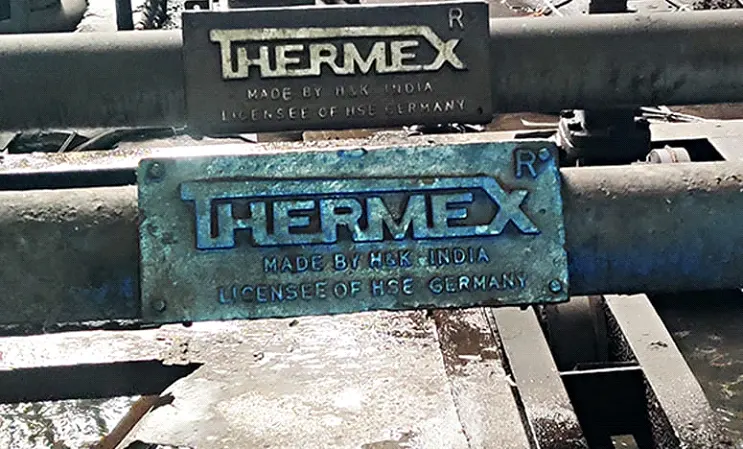

Thermex Technology

bg_image

M/s HENNINGSDORFER STAHL ENGINEERING GmbH's Thermex® technology for quenching and tempering TMT (Thermo-Mechanically Treated) bars is designed to provide superior uniformity in the properties of these bars, making them ideal for use in infrastructure and high-rise residential constructions. The unique properties of TMT bars produced using Thermex® technology are achieved through a two-phase cooling process that results in a distinct difference between the peripheral layer and the core of the TMT bar.

In the first phase of the cooling process, the TMT bar is subjected to intensive cooling in the Thermex Water Cooling system. This rapid cooling of the surface leads to the formation of a martensite zone in the outer layer of the bar. Martensite is a very hard and strong phase of steel, contributing to the surface's hardness and strength.

The second phase involves a slower cooling process where the core of the TMT bar is cooled over an extended period in the open air. This gradual cooling allows a ferrite-pearlite structure to form in the core of the bar. Ferrite-pearlite is a combination of two microstructures that provide the steel with better bendability while maintaining its strength.

The key benefits of this two-phase cooling process in Thermex® technology are:

Uniformity in Strength: The combination of a hardened surface and a softer core ensures that the TMT bars have uniform strength properties throughout their cross-section. This uniformity is crucial for structural integrity in construction.

Toughness: The martensitic surface provides toughness and resistance to wear and tear, making the TMT bars durable in demanding construction applications.

Ductility: The ferrite-pearlite core contributes to the ductility of the TMT bars, making them more flexible and able to withstand bending without breaking.

The second phase involves a slower cooling process where the core of the TMT bar is cooled over an extended period in the open air. This gradual cooling allows a ferrite-pearlite structure to form in the core of the bar. Ferrite-pearlite is a combination of two microstructures that provide the steel with better bendability while maintaining its strength.
